X-ray Film Illuminator Viewer Box

Colligate the standard for X-Ray lluminator that issued by professional organization such as ACR in American, DIN in GERMANY, JIS in Japan and so on. it interprets that: in order to ensure the diagnostic quality, the illuminator that the average luminance ≥2000 cd/m2(average illuminance≥6300 lux)was called high luminance iluminator. It could be used for X-Ray Film diagnose. According to the film with different density, the average luminance is requested more than 2,000-10,000cd/m2. The general iluminator that the density is less than 2000 cd/m2 is just suitable for viewing the accurated diagnosis films.

Availability:

Quantity:



Inquire Add to Basket

Model:
PD-OBI-E
Brand:
YHMED

Product Description

●Nobler thin design

The three-dimensional design frame use silver and dark gray, and the new-style material such as electrophoresis aluminum-alloy,

plastic alloy etc. It shows the nobler character. The shape is thin, the thinness is only 4cm.

●The highest average luminance for the latest illuminator is more than 5,000 cd/m2(average illuminance 16,000 lux).

This new type of patent product adopt with the international advance technology high luminance LED as the backlight. Compare

with the former CCFL for LCD product, the highest average luminance increase from 1200 cd/m2 to over 5,000 cd/m2(≈16,000 lux),

it could be used for viewing and diagnosis high density digital film and mammography film.

●The life of LED is 100,000 hours. It is over 5 times than the CCFL lamp.

●10,000K white and light-blue light color temperature is more suitable for viewing and diagnosis film than the 6500K white light.

Specification

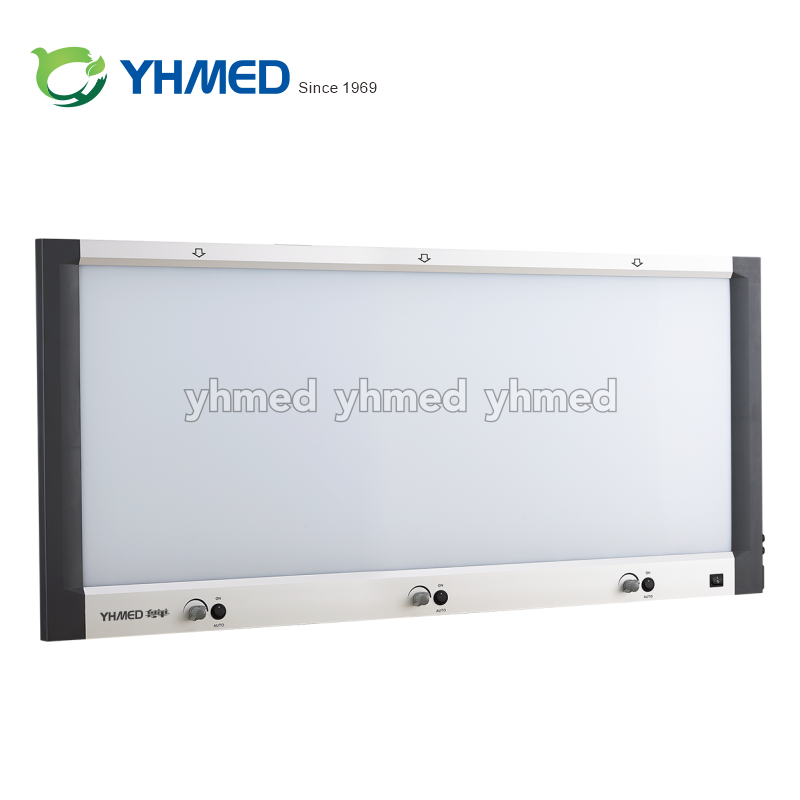

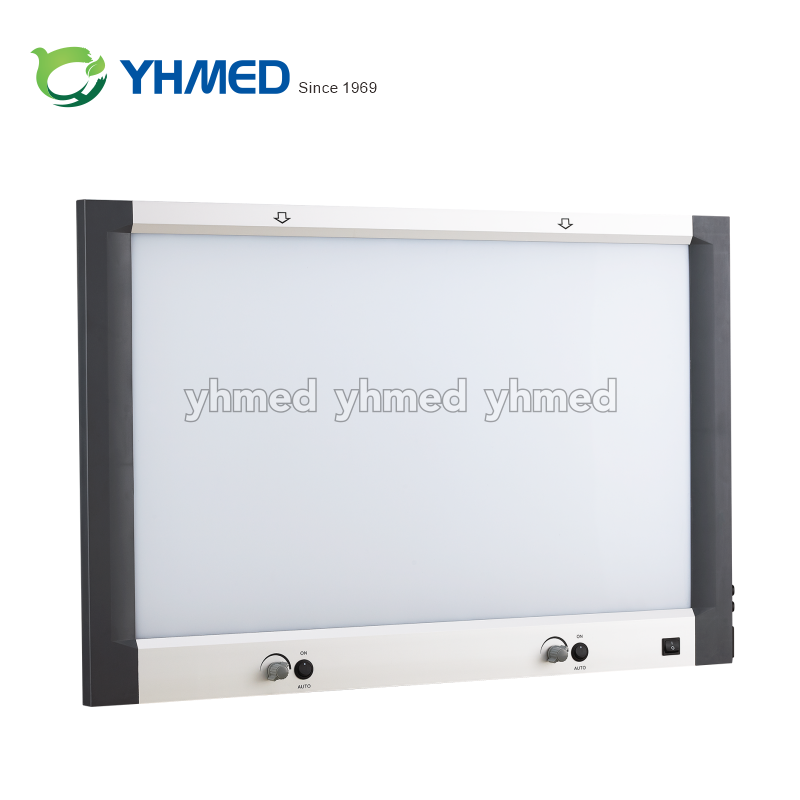

PD-OBI-E	1 connection	2 connection	3 connection	4 connection
Size (HxWxT) mm	470x545x40	830x545x40	1190x545x40	1550x545x40
Viewing area	360x440	720x440	1080x440	1440x440
Power consumption	50W	100W	150W	200W
Backlight type\color temperature\life	high luminance LED/[10000K/6500K]/100000 hours
Power supple	AC 90V-240V,50/60HZ built -in electrical source
Luminance and adjusting area	[average luminance 300cd/m2-5000cd/m2]/average luminance 900lux-16000lux
Luminance uniformity	>= 90%
Clipping device	columniform catercorner compaction cliping device
Install way	wall mounting,standing (the stand is the spare parts for choice ,have to pay for it separate)
Suitble film	normal sumulation X-Ray Film,High density digital X-Ray Film,molybdenum target mammography film
Use condition	luminance of the viewing rooms should less than 100 lux
