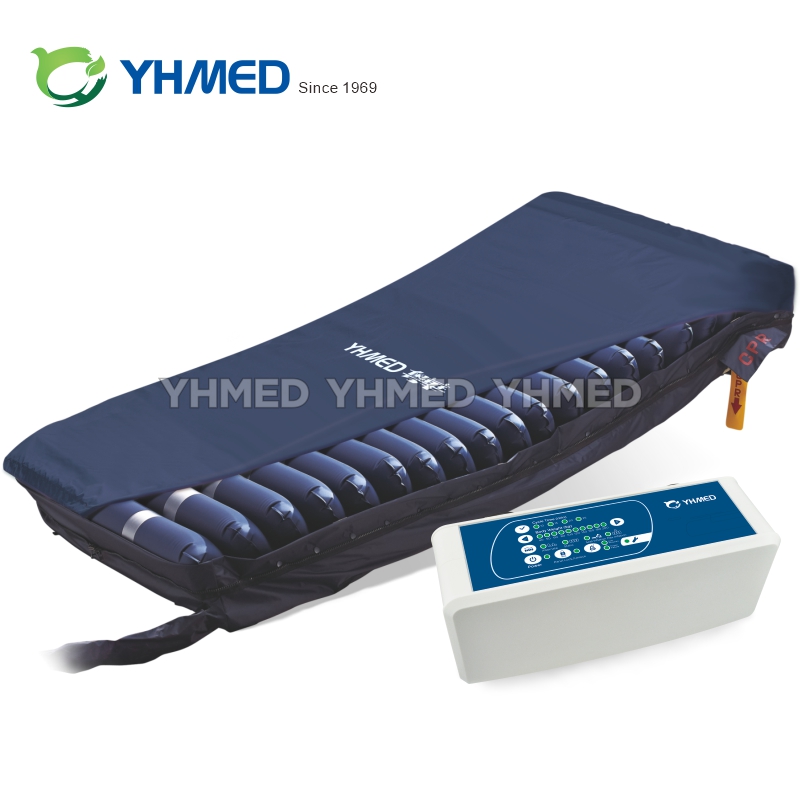

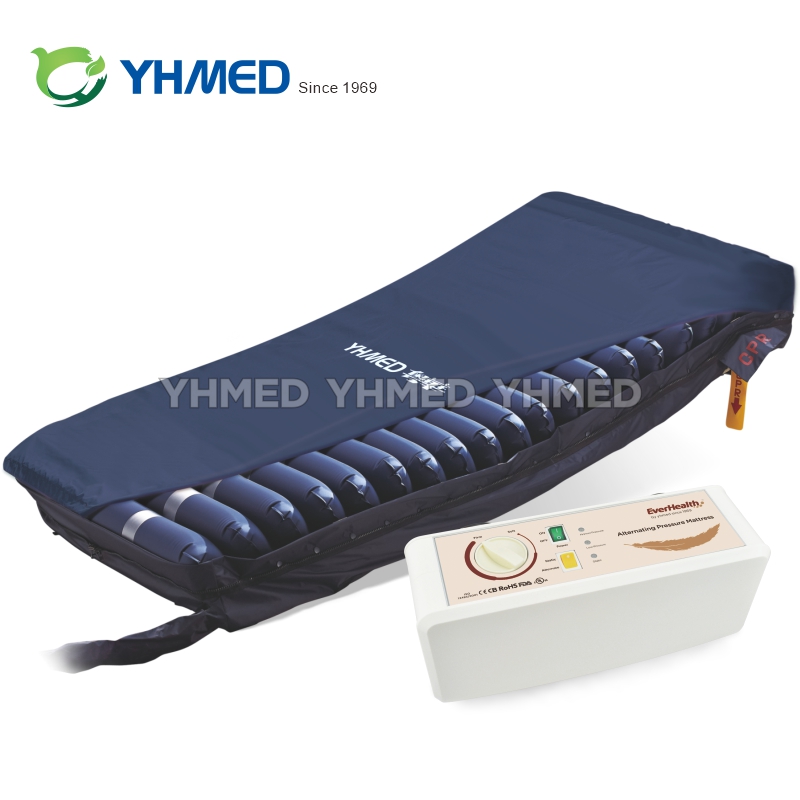

QDC-8010
YHMED
QDC-8010 is one of the advanced systems in QDC Series. The multi-mode pump is not only offering alternating pressure redistribution, but also has a static mode with constant low pressure reduction. In alternating mode, the pressure is periodically redistributed by inflating and deflating cells in order to mimic natural sleep movement patterns and avoid long term pressurization of tissue. In constant static mode, the pressure is about 2/3 lowered when compared to the same pressure level from alternating mode by the means of immersion and envelopment. With visual alarms to notify the caregiver of unusual situation, the system is an ideal to reduce the risk of human error and suitable for the prevention and treatment of all stages of pressure ulcers.
Technical Parameters Of The Mattress
QDC-8010(A) | QDC-8010(B) | |
Dimension (L×W×H) | 200×86×21 cm | 200×90×25 cm |
Maximum Patient Weight | 200 Kg | |
Alternating | 1-in-2 (Group A & B) | |
Cell | 20×8" Cells + 1 Free Spare Cell | |
Cover Material | Nylon PU with Cotton Lining (Zipper-All-Around) | |
Cell Material | Nylon PVC | |
Pressure Ulcer Stage | I,II,III,IV | |
Warranty | 12 Months |
QDC-8010 is one of the advanced systems in QDC Series. The multi-mode pump is not only offering alternating pressure redistribution, but also has a static mode with constant low pressure reduction. In alternating mode, the pressure is periodically redistributed by inflating and deflating cells in order to mimic natural sleep movement patterns and avoid long term pressurization of tissue. In constant static mode, the pressure is about 2/3 lowered when compared to the same pressure level from alternating mode by the means of immersion and envelopment. With visual alarms to notify the caregiver of unusual situation, the system is an ideal to reduce the risk of human error and suitable for the prevention and treatment of all stages of pressure ulcers.
Technical Parameters Of The Mattress
QDC-8010(A) | QDC-8010(B) | |
Dimension (L×W×H) | 200×86×21 cm | 200×90×25 cm |
Maximum Patient Weight | 200 Kg | |
Alternating | 1-in-2 (Group A & B) | |
Cell | 20×8" Cells + 1 Free Spare Cell | |
Cover Material | Nylon PU with Cotton Lining (Zipper-All-Around) | |
Cell Material | Nylon PVC | |
Pressure Ulcer Stage | I,II,III,IV | |
Warranty | 12 Months |
