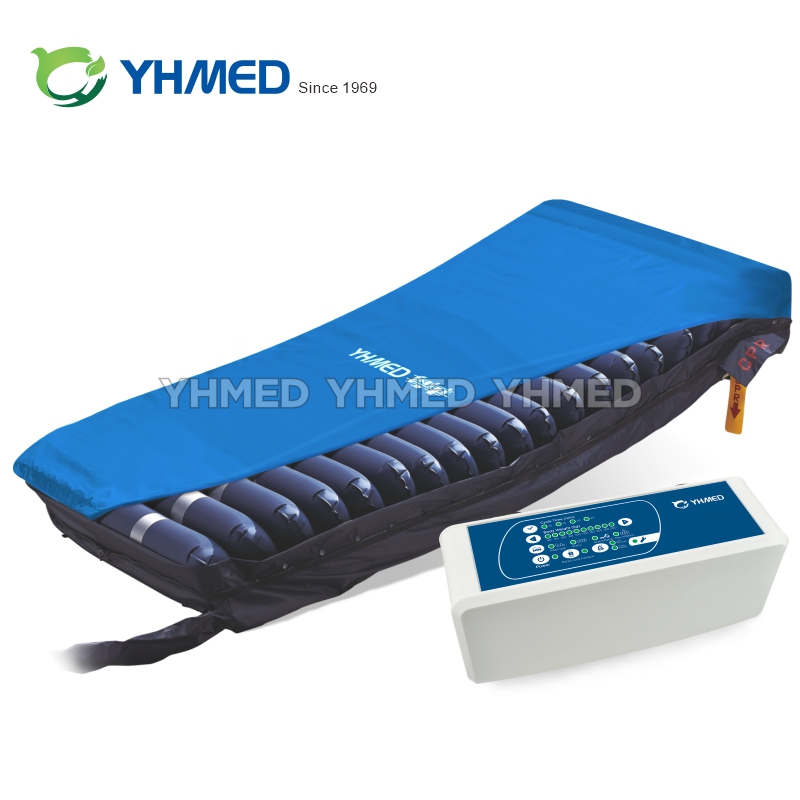

Alternating Pressure Anti Decubitus Air Massage Mattress QDC-8020

QDC-8020 is one of the advanced systems in QDC Series. The multi-mode pump is not only offering alternating pressure redistribution, but also has a static mode with constant low pressure reduction. In alternating mode, the pressure is periodically redistributed by inflating and deflating cells in order to mimic natural sleep movement patterns and avoid long term pressurization of tissue. In constant static mode, the pressure is about 2/3 lowered when compared to the same pressure level from alternating mode by the means of immersion and envelopment. With visual alarms to notify the caregiver of unusual situation, the system is an ideal to reduce the risk of human error and suitable for the prevention and treatment of all stages of pressure ulcers.
Availability:
Quantity:
  • QDC-8020

  • YHMED

QDC-8020 is one of the advanced systems in QDC Series. The multi-mode pump is not only offering alternating pressure redistribution, but also has a static mode with constant low pressure reduction. In alternating mode, the pressure is periodically redistributed by inflating and deflating cells in order to mimic natural sleep movement patterns and avoid long term pressurization of tissue. In constant static mode, the pressure is about 2/3 lowered when compared to the same pressure level from alternating mode by the means of immersion and envelopment. With visual alarms to notify the caregiver of unusual situation, the system is an ideal to reduce the risk of human error and suitable for the prevention and treatment of all stages of pressure ulcers.

Technical Parameters Of The Mattress



QDC-8020(A)

QDC-8020(B)

Dimension (L×W×H)

200×86×21   cm

200×90×25   cm

Maximum Patient   Weight

200 Kg

Alternating

1-in-2   (Group A & B)

Cell

20×8" Cells   + 1 Free Spare Cell

Cover Material

Nylon   PU with Cotton Lining (Zipper-All-Around)

Cell Material

Nylon PVC

Pressure Ulcer   Stage

I,II,III,IV

Warranty

12 Months
